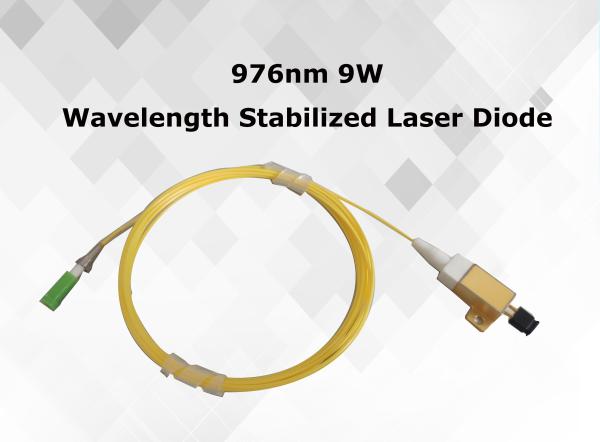

Narrow Linewidth Wavelength Stabilized Laser Diode 976nm 9W High Brightness

Product Categories

BWT Beijing Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : China

Brand Name : BWT

Certification : ISO9001

Model Number : K976AB2RN-9.000W

MOQ : 1 Piece/Pieces

Price : -

Delivery Time : 4-8weeks

Payment Terms : T/T

Supply Ability : 100,000/year

Product Name : 9W laser module

Output Power : 9W

Wavelength : 976nm

Fiber bundle diameter : 105µm

Numerical aperture : 0.22N.A

Application : Laser Pumping

Contact Now

Features:

976nm wavelength

9W output power

105μm/ 0.22NA

Narrow bandwidth △λ≤0.7nm

1020nm-1200nm feedback protection

Applications:

Fiber laser pumping

Specifications(25℃)		Symbol	Unit	K976AB2RN-9.000W
Specifications(25℃)		Symbol	Unit	Minimum	Typical	Maximum
Optical Data	CW-Output Power	Po	W	9	-	-
	Center Wavelength	λc	nm	976±0.5
	Spectral Width (FWHM)	△λ	nm	＜0.7
	Wavelength Shift with Temperature	△λ/△T	nm/℃	-	0.02	-
	Wavelength Shift with Current	△λ/△A	nm/A	-	0.03	-
	Spot ratio 0.15/0.22	NA	%	-	90	-
Electrical Data	Electrical-to-Optical Efficiency	PE	%	-	50	-
	Threshold current	lth	A	-	0.9	-
	Operating current	lop	A	-	-	13
	Operating voltage	Vop	V	-	1.6	1.8
	Slope Efficiency	η	W/A	-	0.9	-
Fiber Data	Core diameter	Dcore	μm	-	105	-
	Cladding diameter	Dclad	μm	-	125	-
	Buffer diameter	Dbuf	μm	-	245	-
	Numeric aperture	NA	NA	-	0.22	-
	Fiber length	Lf	m	-	1	-
	Fiber Loose Tubing Diameter	-	μm	0.9mm PVC 15cm
	Minimum Bending Radius	-	mm	50	-	-
	Fiber termination	-	-	-	None	-
Feedback Isolation	Back reflection wavelength	λ	nm	1020-1200
Feedback Isolation	Back reflection isolation	-	dB	-	30	-
Others	ESD	Vesd	V	-	-	500
	Storage temperature	Tst	℃	-40	-	70
	Lead Soldering Temp	Tls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating case temperature	Top	℃	20	-	30
	Relative Humidity	RH	%	15	-	85
